- Power Handling: 110 W nominal / 220 W continuous program power capacity.
- Frequency Range: 500 Hz – 18,000 Hz, with a recommended crossover of 0.8 kHz (12 dB/octave minimum).
- Sensitivity: 107.5 dB to 109 dB (1W/1m).

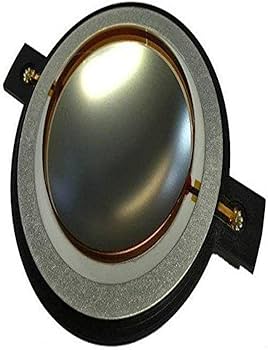

- Diaphragm: High-quality titanium, designed to produce brilliant high and mid frequencies.
- Voice Coil: 75 mm (3-inch) edgewound flat aluminum wire on a Kapton former, powered by a high-energy ferrite magnet.
- Copper Shorting Cap: Lowers distortion and extends the high-frequency response.
Technical Data
- Throat Diameter: 50 mm (2 in)
- Nominal Impedance: Available in both 8 Ω and 16 Ω versions
- Weight: 6.1 kg (13.45 lbs)
- Flux Density: 1.9 T
